Motion Sensor COB LED Light Strip Stair LED Controller Dimming Indoor DC12V No Need to Weld Wires Installation For Stairs

Regular price $52.99
Sale price $52.99 Regular price $0.00
Unit price
10pcs 6000K COB
16 Step COB Set-6
16 Step COB Set-3
20 Step Controller
16 Step Controller
10pcs 3000K COB
150W 12V Transformer
20 Step COB Set-6
20 Step COB Set-3
50cm 16pcs 6-COB
50cm 16pcs 3-COB
50cm 6pcs 6-COB
50cm 6pcs 3-COB
10m extend cable
RF 20Step Controller
RF 16Step Controller
CHINA
Ask a question

Ask a Question

* Required fields

Size guide Share
Product Description

SPECIFICATIONS

Brand Name: GIDEALED

Origin: Mainland China

Certification: ce

Average Life (hrs): 50000h

LED Chip Model: SMD5050

Strip type: SMD

Power Generation: motion

Waterproof: No

Is Smart Device: No

Color Temp(K): 6000k

Occasion: LIVING ROOM

LED Chip Brand: Epistar

Power Source: DC

Model Number: GD-LTGY

Specifications (light beads / m): 144

LEDs Number/M: 280

Item Type: Strip

Power Consumption (W/m): 8.64W/m

Voltage: 12V

No need to weld wires LED Controller with Motion Sensor for Light Strip Stair Dimming Light Easy Connect & Installation to 4 PIN Main Wire to the Stair step light COB LED Strip 12V



Product description

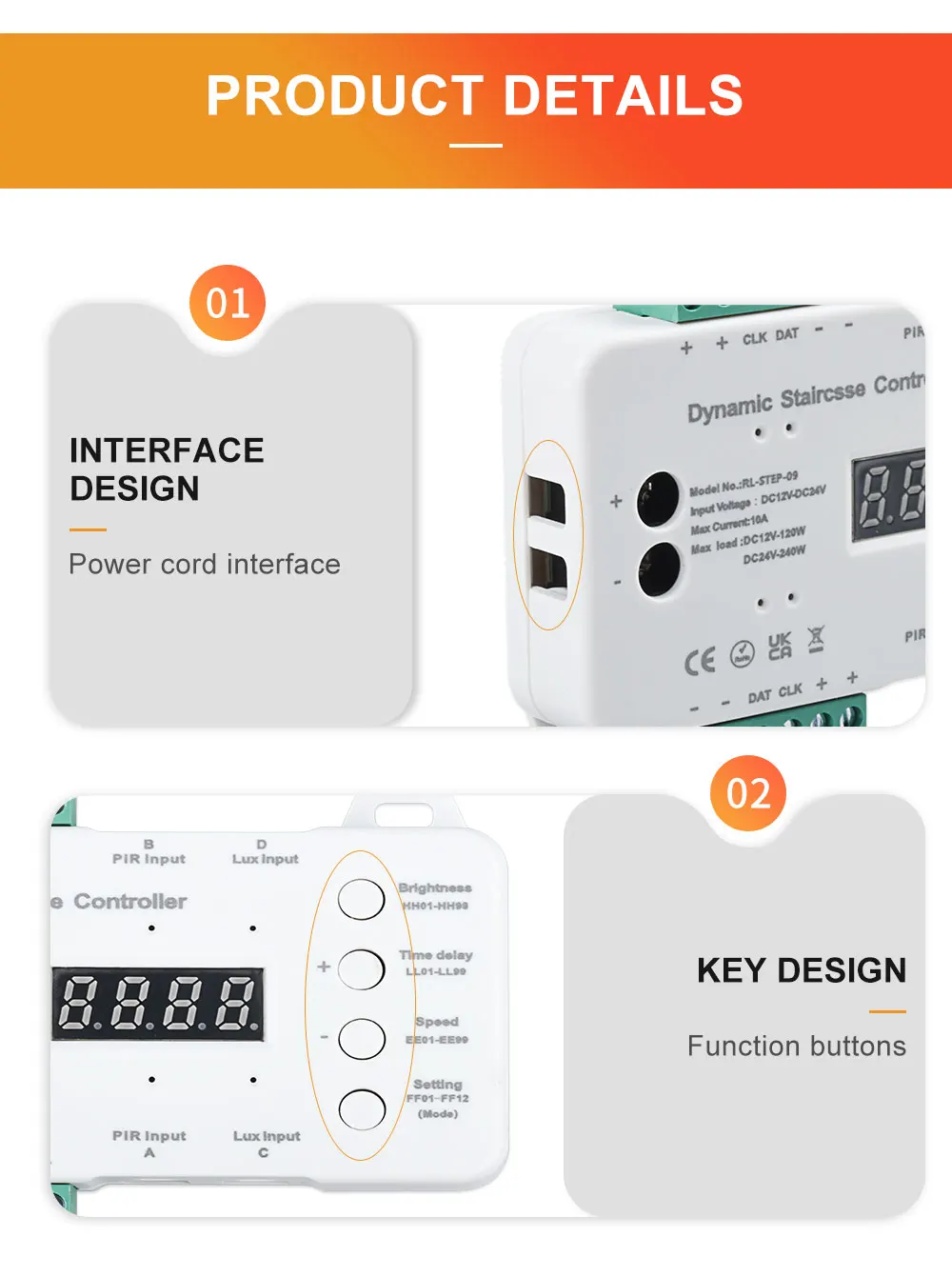

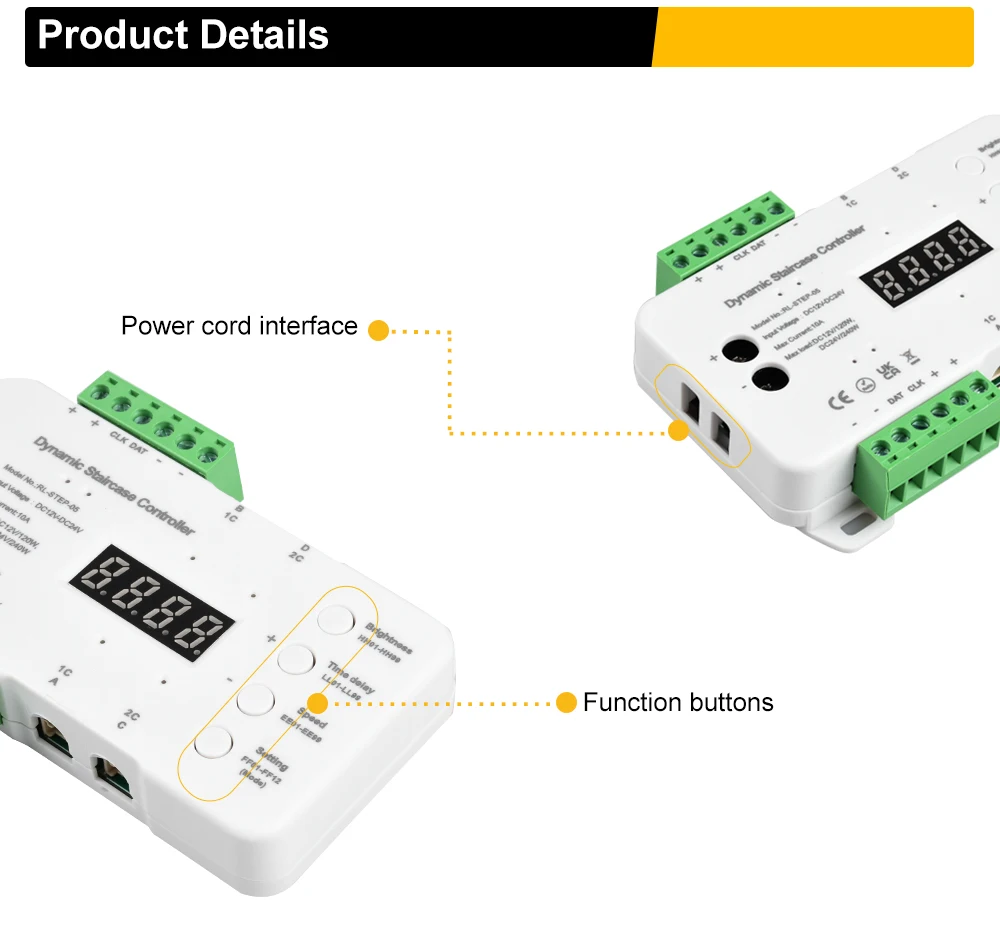

         Dynamic staircase Controller RL-STEP-05

Voltage: DC12V/DC24V

Power: each step<15w  total<240w

 DC12V /120W; DC24V/ 240W Max

Sensors: 2 PIR Sensor

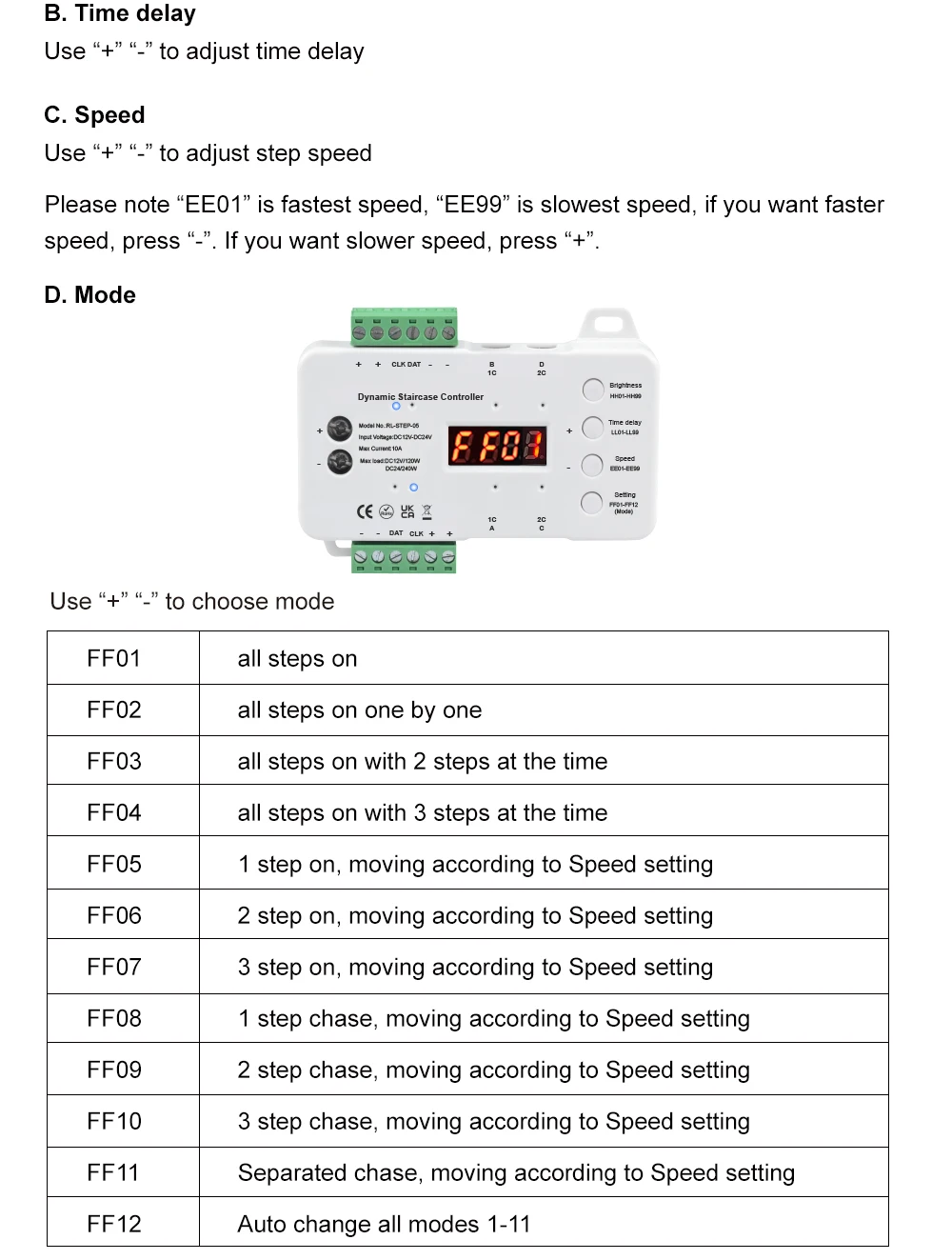

Special function: 4PIN main wire for Max 99 steps  Delay Time/Speed / dimmable Lights and 12 Model

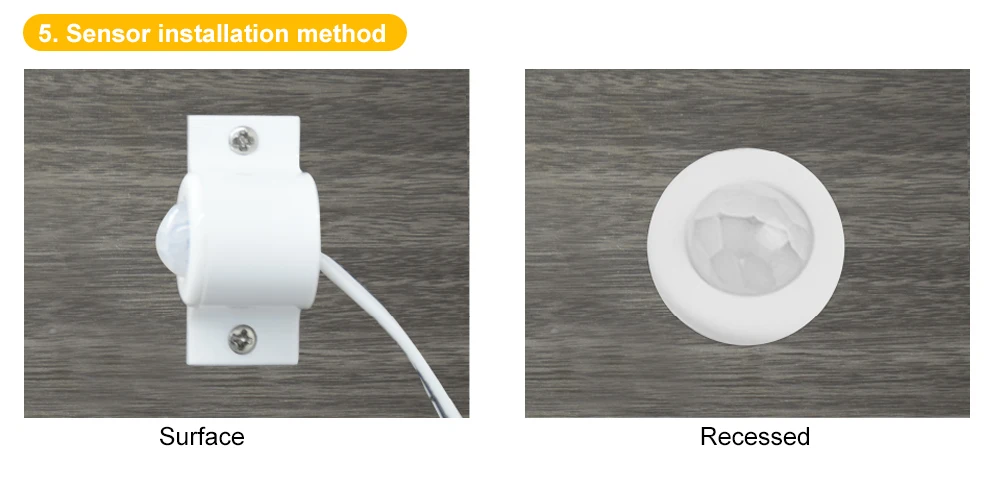

PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )



NOTE:

This controller does not have the function of lighting on both sides of the stairs.

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.



Important note:

Please install the led strips on the main cable at first, after the led strips are all installed, then connect power supply!

Please DO NOT install or take off the led strip when the controller is powered on. This is easy to get the main cable burnt!


Product upgrade:

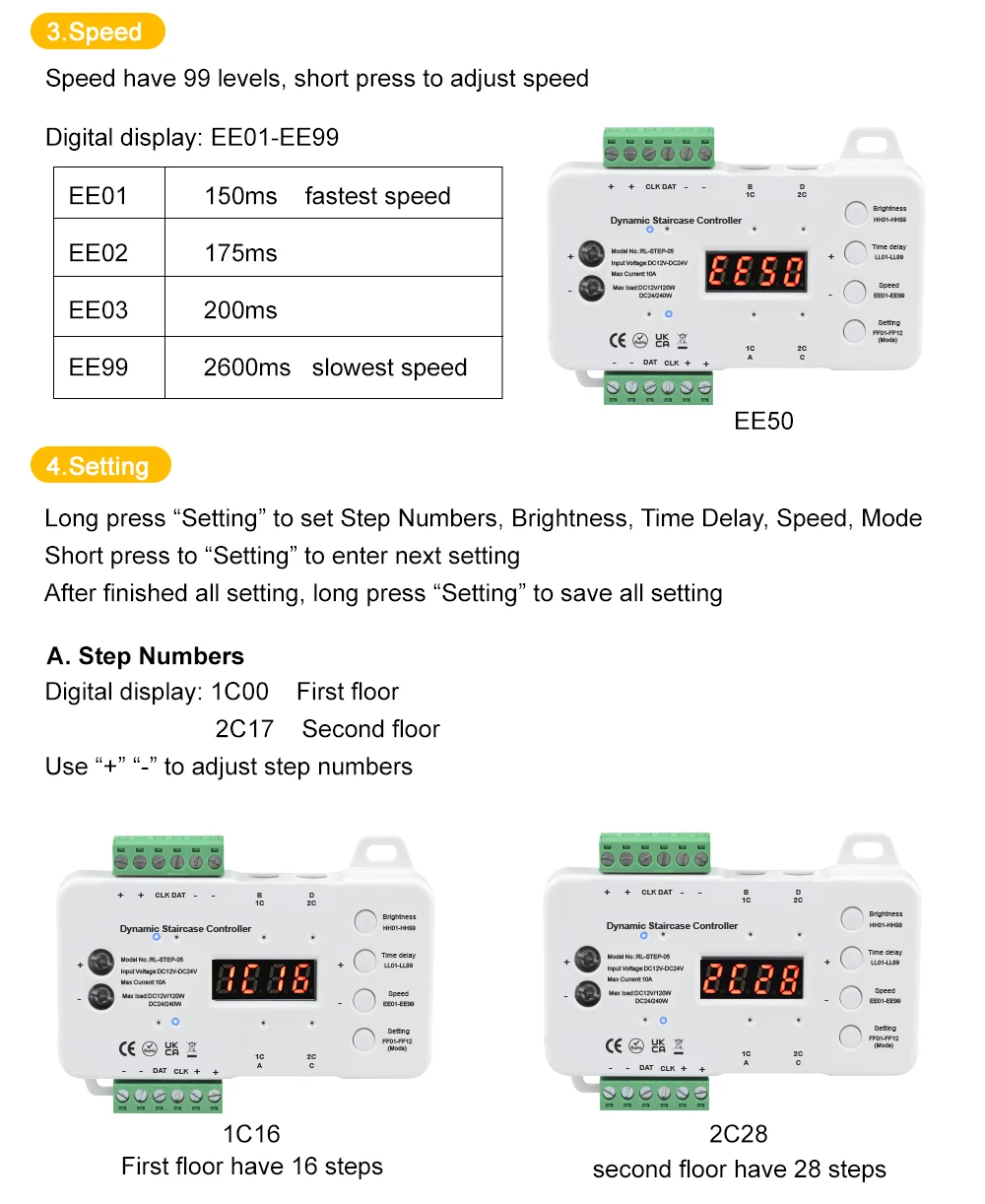

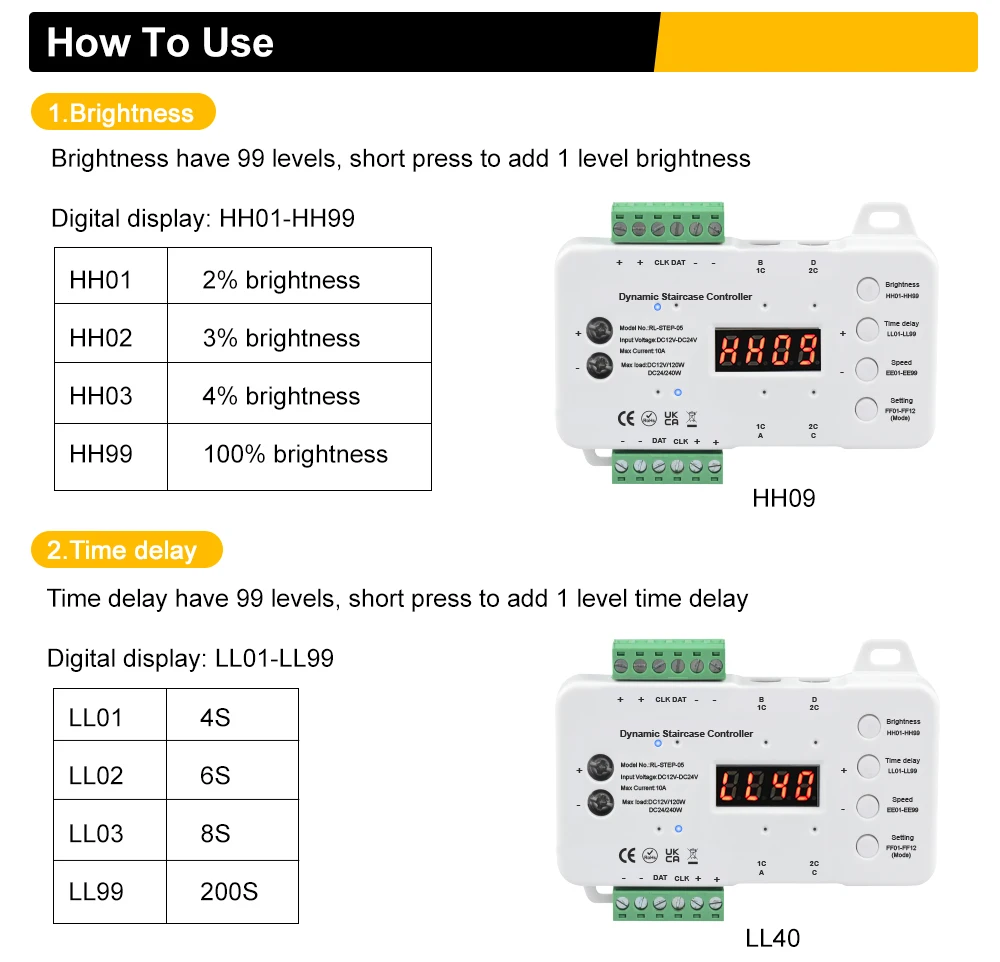

The stair controller has added a dimming function, which can adjust the brightness of the light according to your needs.



Product package:

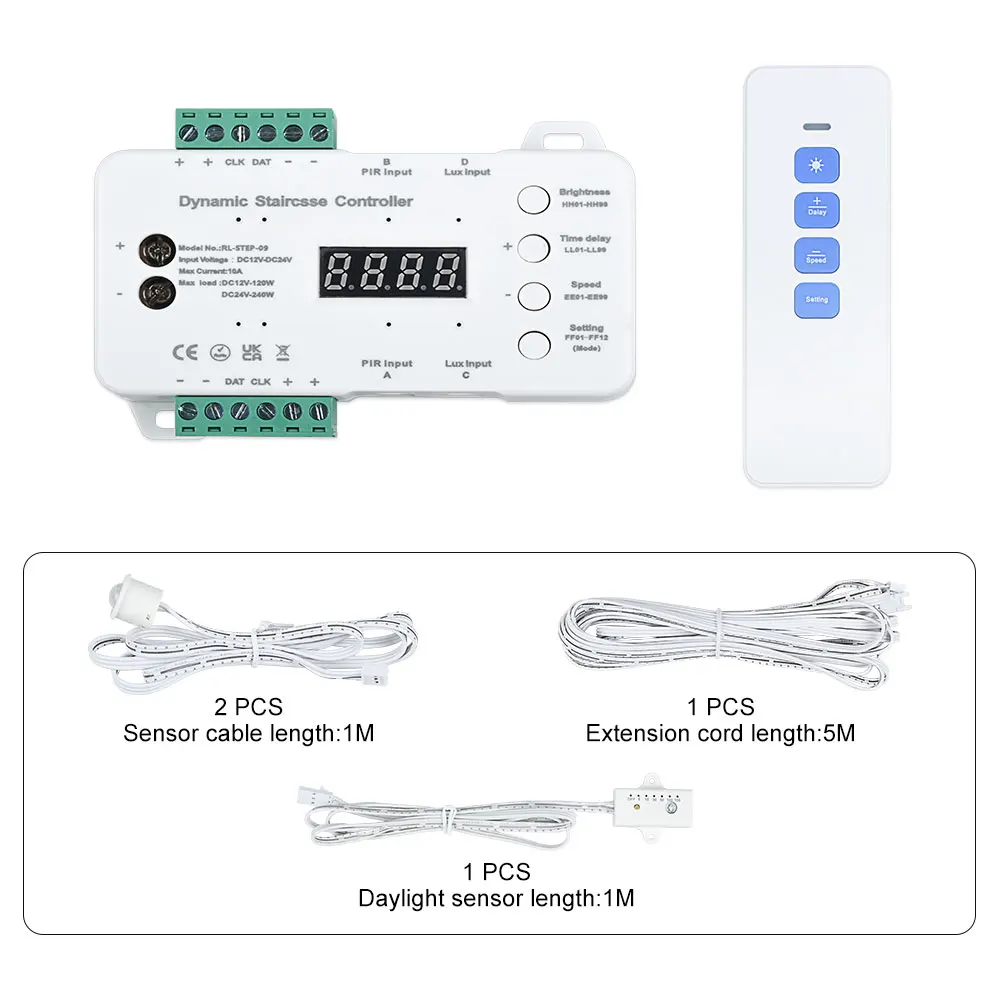

RF 16 Step Controller:

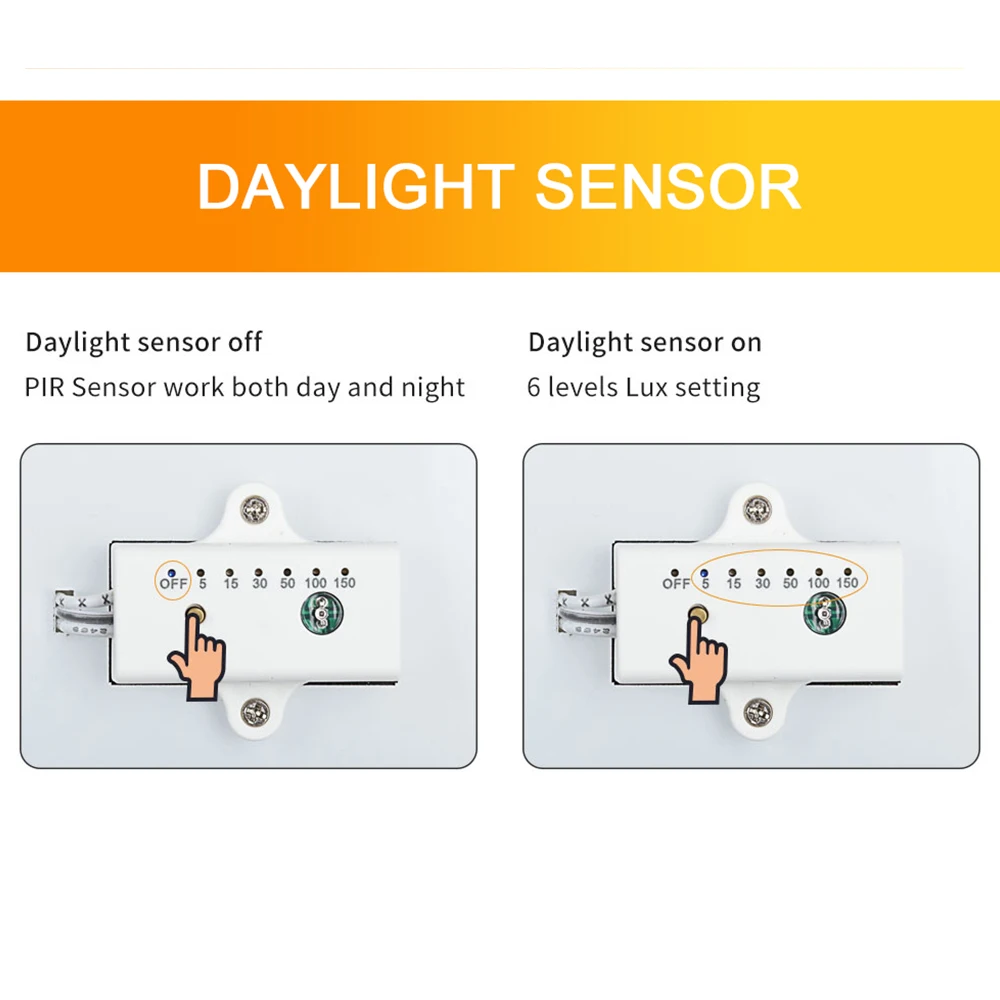

LED Controller  + RF control + 1 Daylight  Sesnor+2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 16 step

(Not LED Strip light and Power supply)


RF 20Step Controller:

LED Controller  + RF control + 1 Daylight  Sesnor+2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 20 step

(Not LED Strip light and Power supply)

16 Step Controller : LED Controller  + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 16 step

                                         (LED Strip light and Power supply Not contain)

20 Step Controller : LED Controller  + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 20 step

                                         (LED Strip light and Power supply Not contain)


16 Step COB Set-3 : LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 16 steps
                                     + 16 pcs 3000K Wram white COB strip light + 12V 150W Power supply

16 Step COB Set-6 : LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 16 steps
                                   + 16 pcs 6000K Cool white COB strip light + 12V 150W Power supply

20 Step COB Set-3 : LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 20 steps
                                    + 20pcs 1m 12V 3000K Wram white COB strip light + 12V 150W Power supply

20 Step COB Set-6 : LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 20 steps
                                    + 20pcs 1m 12V 6000K Cool white COB strip light + 12V 150W Power supply

150W 12V Transformer : 1pcs 150W 12V Transformer Only (Does not contain any other products)

10pcs 3000K COB:10pcs 12V 1m 3000K(Warm white) COB Light Strip Only(Does not contain any other products)

10pcs 6000K COB:10pcs 12V 1m 6000K(Cool white)COB Light Strip Only(Does not contain any other products)

10m extend cable: 2 roll 5 meters Sensor extension cable (If you need additional sensor extension cable, you can consult customer service to open the inventory for you.)

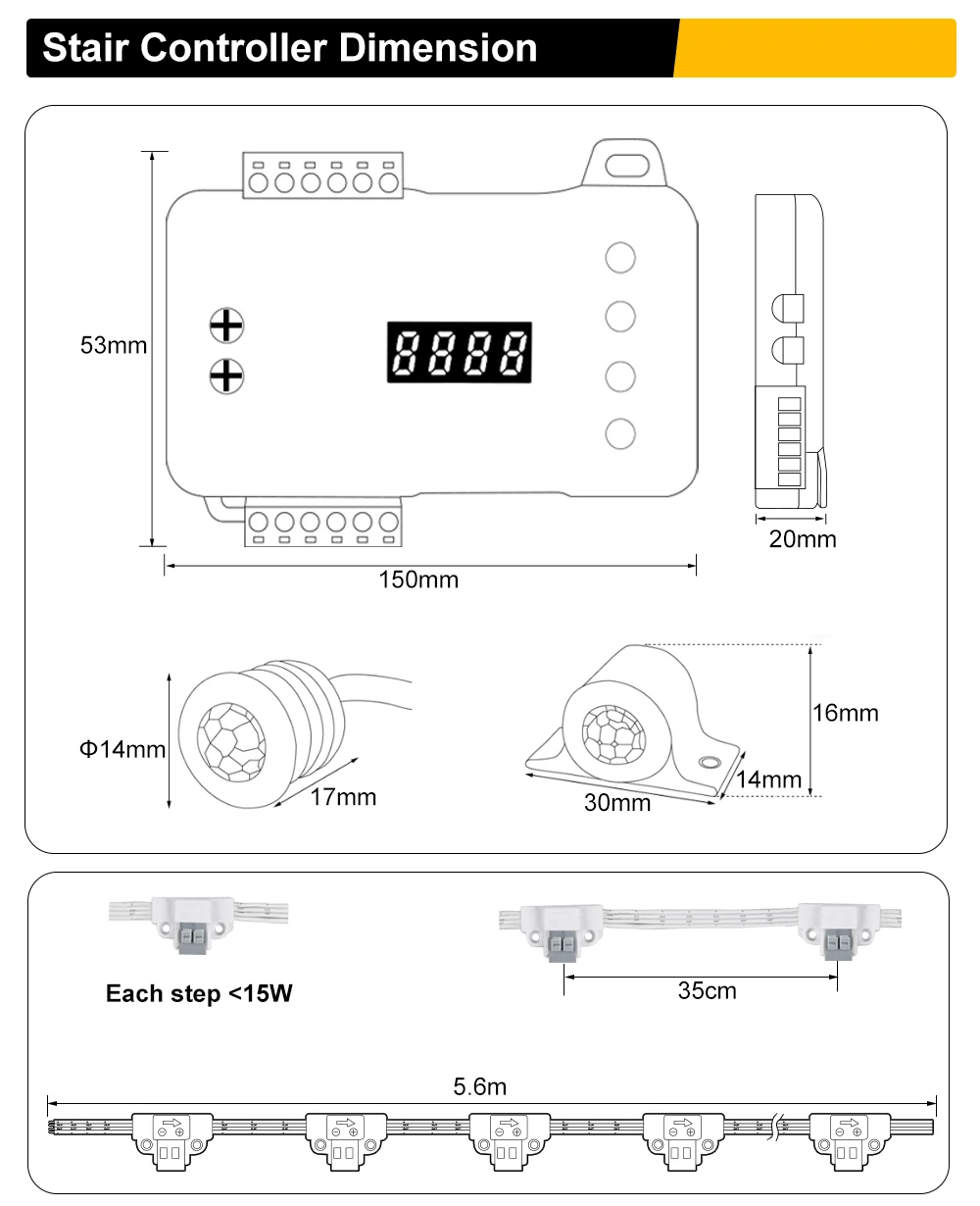

4 PIN main wire each step spacing 35cm
Detailed description of the 09 staircase light controller:
